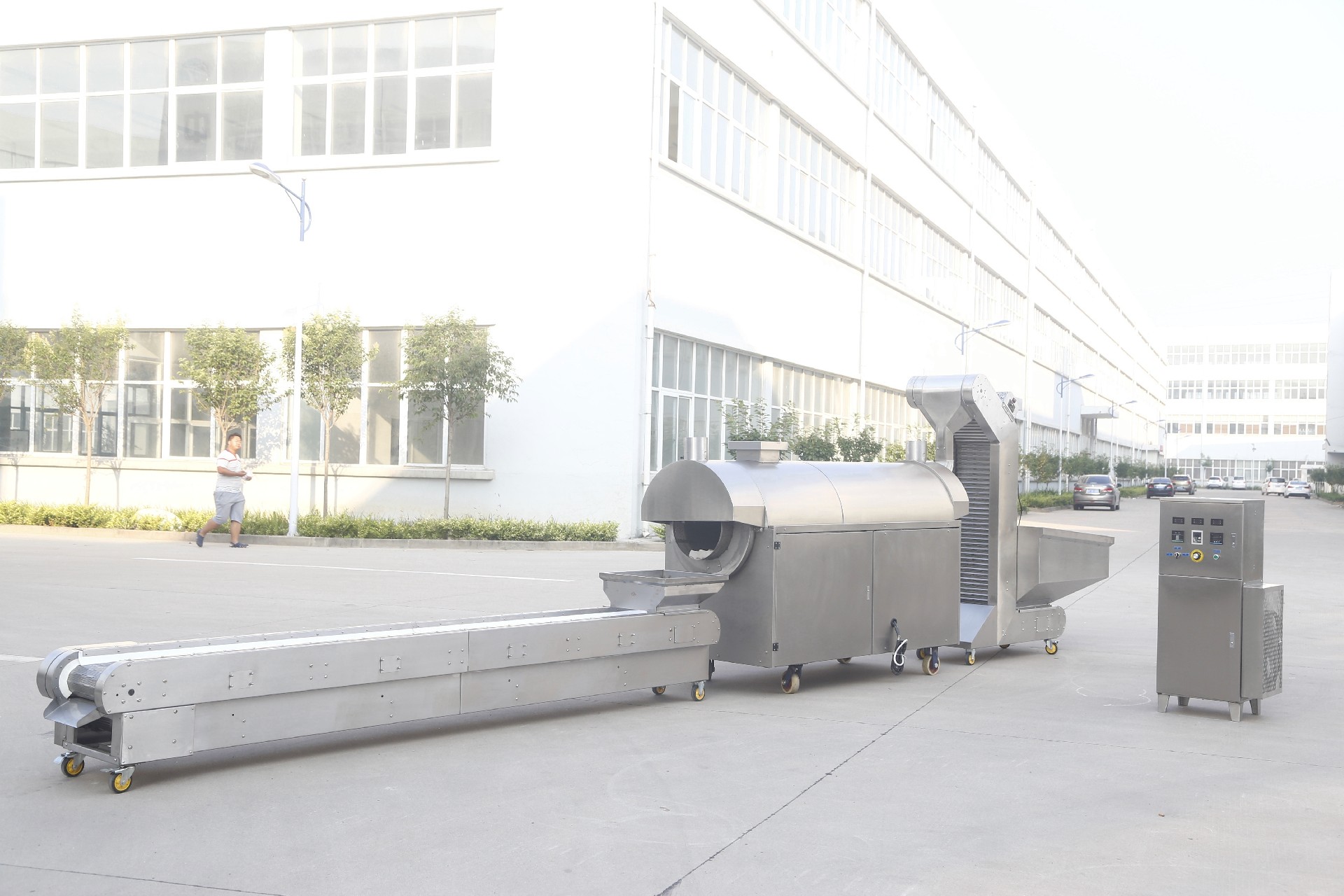

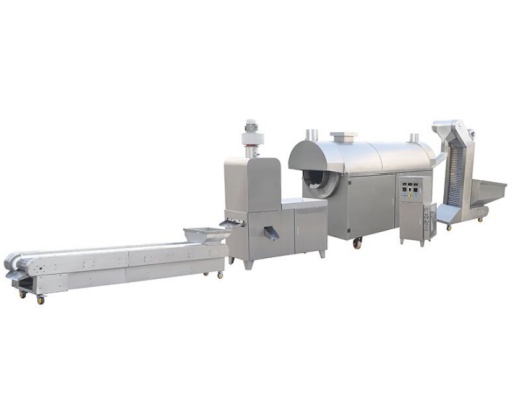

The DCCL 6-20 puffed snacks roasting production line

This equipment is a 2 meters production line from Chike Machinery. It is equipped with production lines such as elevators and cooling beds to create an overall production line. production line equipment can choose the size of the round holes in the roasting net and the length of the assembly line according to the materials you need to roast.Chike Machinery keeps the stock mature production line roasting equipment and supporting equipment, including elevator, cooling bed, vibration filtering wind separator, etc.

Cellphone：+86 15893717199

Send E-mail Get Price

Details

Model	Capacity	Roast time	Heating power	Motor power	Voltage	Overall size(mm)	Size of drum(mm)
DCCL 6-20	75-150 KG/H	3-5minutes	4-32 kw	1.5 kw	380V/50HZ	2500x945x1600mm	600X2000 mm

Main image

图片1.jpg puffed snack production line.jpg

Trade Terms

1.Price term: EXW,FOB,CIF,CNF,DDU

2.Materials: Main body 304# Stainless steel, the batch 430# Stainless steel.

3.Payment: TT,L/C,Paypal,Alipay,Wechat,Credit card.

4.Delivery time: need 15-20working days.

5.Customized service: accept. MOQ: 1set

6.Package: packing in ply wooden case.

7.Shipping term: by sea, by air and by train.

8.Warranty term: 2years.

Product Description

The machine mainly use to produce puffed rice, corn,roast nuts, grains and drying the granular materials.High degree of automation,Intelligent,Environmental protection.The whole machine is made of stainless steel to ensure sanitation and safety of roasted products, accord with GMP standard. The highest temperature can reach 400℃. It has self-diagnosis function,the faults code will be shown on the display screen.

Application
